Choosing lenses and macro options for detailed iris imaging in Canadian clinics

What is comparable provider and why lens choice matters

comparable provider is a complementary practice that records and studies the iris pattern, fibre detail and pigmentation as part of a holistic assessment. Successful image capture depends on optical choices: the lens determines magnification, field of view, working distance, depth of field and how aggressively illumination interacts with the corneal surface. Those optical decisions directly affect whether an image is usable for charting, comparison over time, teaching or software-assisted analysis.

What “macro” means for iris imaging — focal length, working distance and magnification

When we say “macro” for iris work we mean optics that give a near 1:1 or higher magnification of the iris detail on the sensor while keeping the subject comfortable. Three practical terms to check when evaluating optics:

• Focal length — determines how large the iris fills the frame at a given distance. Short focal lengths give wider fields; longer focal lengths give tighter crops without moving the camera too close.
• Working distance — how far the lens must be from the eye to focus. Longer working distances are more comfortable and reduce reflexes; very short distances increase glare and patient movement risk.
• Magnification — how much iris structure is resolved on the sensor. Higher magnification is useful for texture analysis but magnifies motion and reduces depth of field.

Key image-quality factors that depend on lens choice

The lens interacts with the camera sensor and illumination to create usable clinical images. Focus on these image-quality factors when selecting optics:

• Resolution and usable pixels — sensor pixels matter only if the lens resolution and optics deliver detail to them. A 12 MP camera records more resolvable detail than a 5 MP camera when the lens resolves that detail across the iris.
• Sharpness across the field — look for lenses with even sharpness from centre to edge; off-axis blur hides peripheral markers practitioners use in charting.
• Field of view (FOV) — a lens that frames the whole iris with minimal cropped margin is preferable for reproducible capture and software overlays.
• Distortion and chromatic aberration — both can mislead analysis. Low-distortion optics and anti-reflection coatings are practical priorities.

Practical lens options for detailed iris work: iris lens vs hair/skin lens vs macro adapters

Optical options we commonly use and why:

• Iris lens (dedicated) — optimised for a single-eye field of view and working distance; best for high-detail iris imaging and software comparison. MAIKONG accessories for MK-9822U include a 30× iris lens that is intended for this purpose (see Accessories below; data-fact-id=”133″).
• Hair/skin lens — shallower magnification but a wider field; useful when you want to include periocular skin or sclera context. MK-980U lists compatibility with iris and hair lenses (data-fact-id=”140″), making it versatile for intake photos.
• Macro adapters — inexpensive ways to increase magnification on existing optics; convenient for spot checks but often introduce extra glass and may reduce edge sharpness and increase reflections. Use them only if you validate the final image quality against a dedicated iris lens.

How camera resolution interacts with lens choice — 5 MP (MK 980U) vs 12 MP (MK 9822U)

Practical takeaway: use the 12 MP MK‑9822U when you need the maximal pixel budget for analysis, archiving and teaching images that will be cropped or inspected in detail. Use the MK‑980U where the built-in illumination pattern, stabilisation and pause-capture workflow speed are more valuable—for example, in busy clinics or mobile visits.

Illumination and reflection control linked to lens selection

Lighting is as important as optics. Consider these factors when pairing lenses:

• LED layout and control — MK‑980U includes a 6‑light LED ring with separate zones (2 for iris, 4 for sclera) which helps reduce specular hotspots when you need both iris detail and scleral context (data-fact-id=”140″). MK‑9822U supports 4/2 LED lamp control which gives flexible shadowing for texture highlight (data-fact-id=”133″).
• Polarisation and angles — rotating or shielding part of the ring, using polarising filters or slightly off‑axis light reduces corneal glare when you are working at short distances.
• Diffusion and coatings — lenses with anti-reflection coatings and light diffusers on the LED ring preserve contrast and reduce chromatic reflections; verify coatings when comparing third‑party optics.

Capture workflow: focus adjustment, single-capture vs pause capture, and stabilisation

Capture consistency matters for longitudinal comparisons. Design your workflow around these controls:

• Adjustable focus — both MK‑980U and MK‑9822U systems allow focus adjustment; always verify focus at the intended working distance and lock or note the focus ring setting for repeat captures (data-fact-id=”140″, data-fact-id=”133″).
• Single-capture vs pause capture — MK‑980U supports single capture and a digital pause function that allows you to stabilise and re-frame without losing the current camera state (data-fact-id=”140″); this is helpful during teaching or when coaching a client to relax.
• Physical stabilisation — use a stand or chin rest for the highest repeatability. Handheld capture is feasible for mobile visits but accept a slightly larger rejection rate due to motion blur.

Real-world use scenarios and recommended lens setups

• Clinical intake and patient records — MK‑980U with its 6‑LED ring and hair/iris lens compatibility is practical for fast, comfortable captures at standard working distances (data-fact-id=”140″).
• Detailed analysis and teaching — MK‑9822U (12 MP) paired with the supplied 30× iris lens gives higher detail and larger cropping headroom for classroom overlays and printed charts (data-fact-id=”133″).
• Mobile visits and trade shows — use MK‑980U handheld with a compact mount and the pause-capture workflow; accept that you will trade ultimate micro-detail for speed and portability (data-fact-id=”140″).

Common mistakes and limitations when choosing lenses

Things we see practitioners get wrong:

• Over-magnification — too much magnification reduces depth of field and makes small movements ruin the image. Balance magnification with patient comfort and stabilisation method.
• Neglecting illumination match — a high-resolution lens will not help if lighting causes glare or uneven exposure. Test the lens with your capture lights before adopting it for clinical records.
• Assuming sensors solve optics — a higher megapixel camera cannot recover detail if the lens does not resolve it. Always validate the lens + camera combination with a real iris subject.
• Ignoring software and workflow — capture consistency and metadata (which eye, date, capture settings) are as important as optical quality for longitudinal work; confirm your software handles the image sizes and formats produced by the camera (see software notes below).

Compatibility checklist: lens compatibility, accessories included with MAIKONG models, and software support

Essential points to confirm before you buy or configure:

• Which lens mounts fit your camera and stand; verify the mechanical adapter with MAIKONG.
• Illumination control types (6‑LED ring vs 4/2 LED) and whether the lens blocks or interferes with the ring.

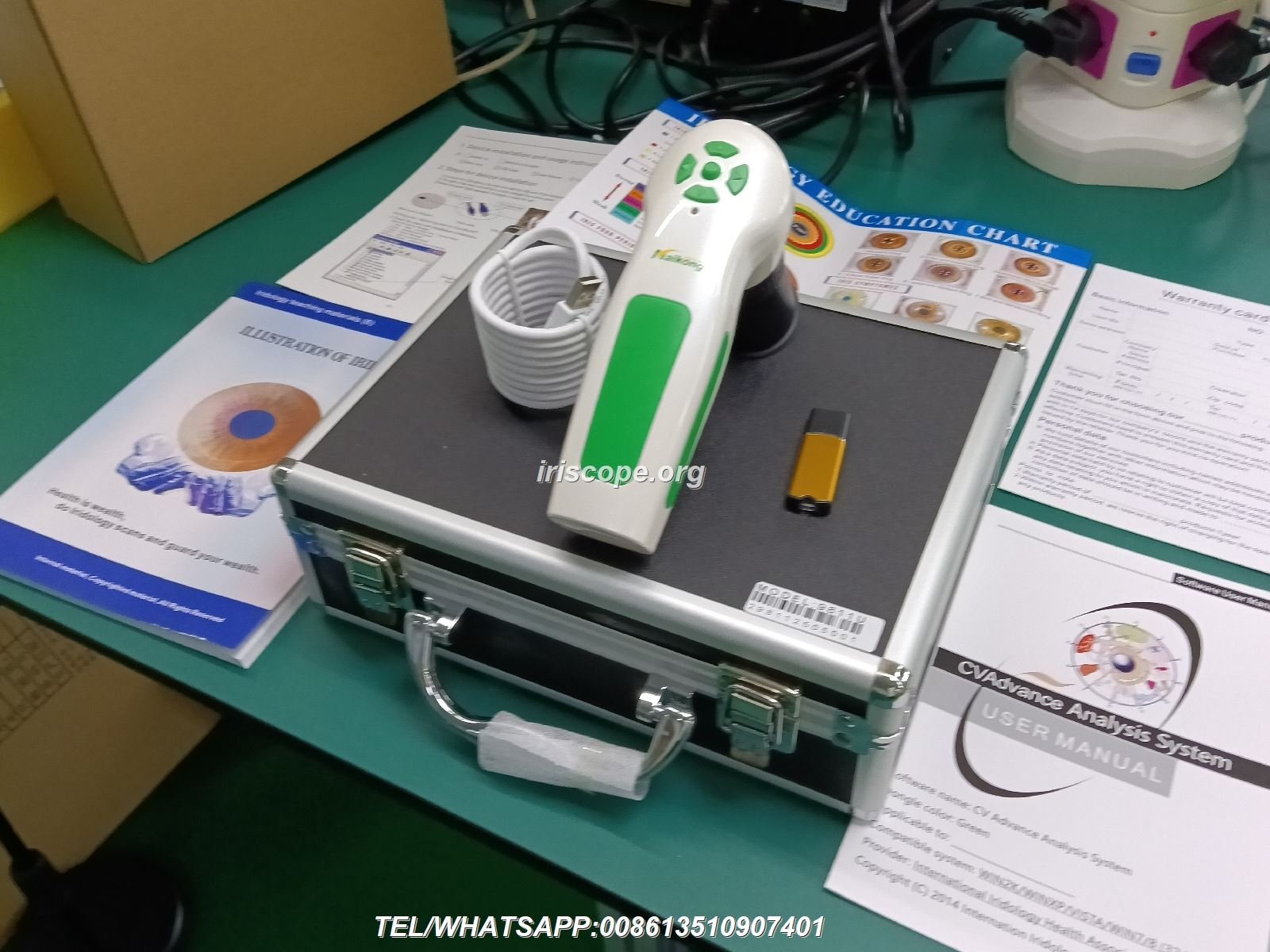

• Accessories included: MK‑9822U ships with a 30× iris lens, handset, aluminium box, lens cover, comparable provider chart, user manual and software USB key (data-fact-id=”133″).
• Software compatibility: MAIKONG’s Maikong comparable provider Software Analysis System (MaikongCVAdvanceEnglishWiFiV3401) supports Windows and macOS platforms as listed on product pages (data-fact-id=”133″).
• Warranty and lead time: MAIKONG lists a 1‑year warranty and short lead times for single units; request shipping and support details for Canada at enquiry (source: enterprise self-report).

Maintenance and routine checks for lens performance

Keep optics reliable with a short maintenance routine:

• Daily: inspect lens and LED ring for dust and fingerprints; clean with lens tissue and approved cleaner.
• Weekly: capture a standard reference iris (or high-contrast calibration target) to check sharpness across the field and repeatability of white balance.
• Quarterly: test for vignetting, chromatic aberration and LED uniformity; document any deterioration and report to your supplier if it exceeds normal wear.
• Software checks: confirm that software recognises the camera and maintains consistent white balance and colour profiles between updates.

Quick testing protocol to validate a lens choice in your clinic

1. Mount the lens on the actual camera and set the clinic lighting you plan to use. Record the LED zone settings.
2. Capture a pair of eyes from the same client in both configurations (your new lens and your current standard) using chin rest or handheld as intended. Use the same camera settings and distance.
3. Compare images at 100% pixel view for sharpness, edge clarity, and reflection; check how the iris fills the frame and whether peripheral markers are visible for charting.
4. Repeat after a few days with a different client to check repeatability and comfort (patient blink rate, reflex).
5. Accept or reject the lens based on repeatable image quality, patient comfort and workflow speed.
